Lawrence Laboratory
46 Aurora Road (Helston Road) 3 Hobson Street (Hardy Street) The National Dairy Association of New Zealand Ltd Laboratory NZ Freezing Industries Laboratory H.W. Lawrence & Son, Chemical Services Laboratories, Scientific Industries Ltd, Laboratory Support Services.

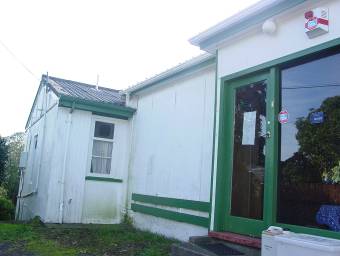

National Dairy Association of NZ laboratory building (left), 1965 addition (centre) 1954 addition (right). Image: WCC, 2007
-
Constructed
1919 - 1965
-
-
Architect(s)
-
Builder(s)
-
The Lawrence Laboratory complex is an interesting example of an early 20th century light-industrial complex that was developed to suit the needs of a growing agricultural research business. The 1919 & 1947 laboratory buildings are good representative examples of modest, but well designed, utilitarian buildings. Each was designed in the immediate years after WWI and WWII at a time when there was a scarcity of building materials, but both are carefully crafted to fit their humble, utilitarian purpose.
The buildings have a historic association with the development of agricultural science and technology in New Zealand, a major contributor the nation’s economy. They were in continuous use as a scientific laboratory for nearly 90 years.
The buildings are a rare surviving example of an early twentieth century private industrial laboratory complex and have considerable cultural heritage significance for this reason.
-
Downloadable(s)
-
close
History
-
The Lawrence Laboratory was established by chemist Henry W. Lawrence (? – 1942) in his own home in Johnsonville. Lawrence was born in London and attended the University of London. He worked for the Royal Agricultural Society and for Sir Henry Gilbert at the Rothamsted Experimental Station at Harpenden, where soil treatment using superphosphates was first discovered. He came to New Zealand in 1899 and worked for the Agricultural Department until he started his own business in c.1907-08, as the first consultant agricultural chemist in private practice in New Zealand. He was a Fellow of the Institute of Chemistry (FIC) UK, and a founder member of the New Zealand Institute of Chemistry. He held public office as a commissioner on the Johnsonville Town Board, served on the Hutt Valley Electric Power Board and on the council of the Wellington Chamber of Commerce.
Lawrence worked as a “private analyst” and was often contracted by others in the agriculture industry to educate farmers in the use of fertilisers. In 1908 he purchased a site at 48 Aurora Road (now Helston Road) that had recently been subdivided from farmland, presumably to build a house. By 1909 his Johnsonville laboratory was a “fully equipped agricultural and analytic laboratory” that could analyse soil samples and return the results within a week, and this laboratory was said to have been located in the out-buildings of the family home. He went on to purchase the neighbouring property at 46 Aurora (Helston) Road with access from Hobson (Hardy) Street that is the site of the current laboratory complex.
Lawrence’s laboratory is notable as a very early example of a private industrial complex and Lawrence was a vocal critic of Government scientists who used their publically funded laboratories, equipment (and chemicals) to carry out private work, thereby undercutting the fees charged by their freelance colleagues. Despite these problems the demand for the laboratory’s services grew, and it expanded into purpose-built premises in 1920. H.W. Lawrence’s son Gilbert (1894-1972) joined the business at around this time and the company was later renamed H. W. Lawrence and Son. Daughters Winifred and Jean also worked for the laboratory for some time. Gilbert Lawrence was a trained chemist, and was chairman of directors until 1963. He was made OBE the following year. He died in 1972, after a long and distinguished career, both in science and local body politics.
The laboratory worked across many industries within the agricultural sector. It was retained by most of the country’s freezing works to advise on fertilisers and tallow, and the 1919-20 building was originally named the ‘Freezing Industries Laboratory’ when it opened. The company also gave advice to the dairy industry, the brewing and malting industry, the food industry, and the racing industry, and to others on trade waste, water pollution, soil testing, and corrosion.

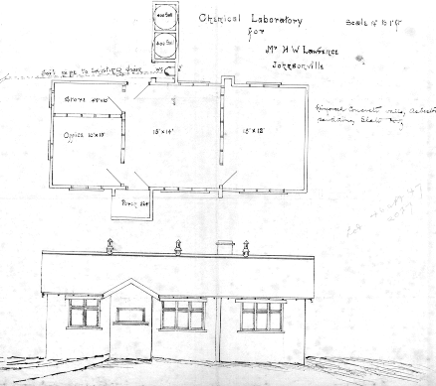

The 1919-20 laboratory building (Laboratory 1) is the oldest remaining building on site, and was originally designed to house an office, store, two workrooms, a WC, and two tank rooms. A lean-to addition was added to this building in 1944 to house an acid store, furnace, ‘balance’ room and ‘water’ room. In 1947 a new, free-standing, laboratory (Laboratory 2) was designed by Stanley Fearn, and named the National Dairy Association of New Zealand Laboratory. This was constructed to the far west of the site and consisted of an open verandah to the east called the ‘store’ or ‘annexe’ and a packing room and manufacturing room. There was a further addition to the west of Laboratory 1 in 1954 that consisted of offices, a WC and a darkroom. 1965 saw the final major addition on site with the infill of the remaining open space between Laboratory 1 and 2. At some time around this date Aurora Road was renamed Helston Road, and Hobson Street was renamed Hardy Street.
The laboratory celebrated its 50th Anniversary in March 1957 and was said to be the largest business of its kind in the country at that time. It remained Lawrence and Son until c.1968 and the business continued to operate under several different names until 2007, when it was called Laboratory Support Services. The land and buildings were subdivided into three “fee simple” sites in 2007 with land use consent for “heritage”, “residential buildings” and “earthworks”.
-
Modifications
close
-
1908
-
H.W. Lawrence purchased the neighbouring property at 48 Helston Road.
-
1919 - 1920
-
Laboratory building constructed (laboratory 1). This building consisted of an office, store, two workrooms, a WC, and two tank rooms. SR JTB70 dated 20 Nov 1919.
-
1944
-
Lean-to addition to the east of the existing laboratory building. The additional rooms were an acid store, furnace, ‘balance’ room and ‘water’ room. SR JTB207
-
1947
-
Construction of the National Dairy Association of NZ Laboratory constructed to the far west of the site (Laboratory 2). This building consisted of an open verandah to the east called the ‘store’ or ‘annexe’ and a packing room and manufacturing room. SR JTB321
-
1954
-
Addition to the west of Laboratory 1 consisting of offices, a WC and a darkroom SR B36610
-
1964
-
Addition to the ancillary buildings (bottle store) to the north east of the site. SR C15436
-
1965
-
Infill building constructed in the remaining space between the Laboratory 2 (Dairy) and Laboratory 1 (1920 building) SR C18393.
-
c.1968
-
Lawrence & Sons ceased trading and the business was renamed Laboratory Support Services
-
2007
-
Laboratory Support Services closed SR 135044 & the site was subdivided SR 161354 with land use consent for heritage, residential buildings and earthworks.
-
2012
-
Building Strength Inventory – yet to be assessed SR 269363
-
-
Occupation History
close
Not assessed
-
-
close
Architectural Information
-
Building Classification(s)
close
Not assessed
-
Architecture
close

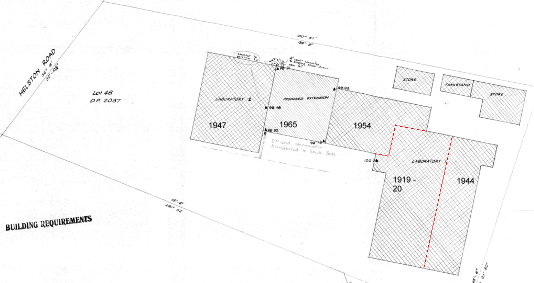

The Lawrence Laboratory building is a series of small, domestic scale, buildings constructed at various times from 1919 to 1965.

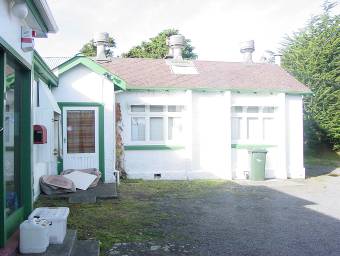

1919 Laboratory 1
This single storey building was the original purpose built laboratory building on the site. It is single storey, finished in heavily textured cement render on reinforced concrete walls, and roofed with diamond-shaped (lightweight) “slate” tiles. These materials, and the casement windows with fanlights above, are common for the 1920s. Three very prominent roof ventilators proclaim a scientific use, but if it wasn’t for these, the domestic character of the building would indicate it to be a private home. The concrete buttresses on the west elevation are an interesting and unusual feature of this building. There is a large 1944 lean-to extension to the east of this building, also finished in textured cement render.

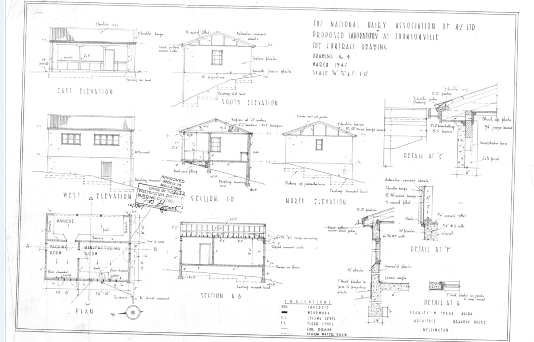

1947 Laboratory 2
This laboratory was designed by Stanley Fearn and located to the west of the site where the land slopes steeply to Helston Road. It has a single storey with a large basement, and when measured from the west elevation, is the tallest building on the site. The building has a corrugated ‘fibrolite’ roof on timber framing, ‘asbestos cement sheet’ gable ends over concrete walls and floors. The building’s interior and exterior is finished in cement render and there is a coved detail cast into the concrete slab at the junction between the walls and floors, presumably for ease of cleaning. The windows are timber casements. The building was modified when the eastern open verandah was enclosed, but is a good representative example of a post WWII utilitarian building.
1954 west addition to Laboratory 1
This is a modest lightweight building constructed on a concrete slab, clad in lightweight boards with a flat ‘Malthoid’ (felt) roof.
1965
This is a modest lightweight building clad in asbestos cement sheets with a low pitched profiled steel roof and fitted with timber casement windows and a large timber glazed entrance door.
-
Materials
close
1919 Laboratory 1
Reinforced concrete floor and walls
Lightweight ‘slate’ roof
Timber windows and doors
Asbestos sheet internal partition wall linings on timber frame
1947 Laboratory 2
Concrete walls and floors coated in cement render internally and externally
Corrugated fibrolite (query asbestos) roof
Asbestos sheet gable cladding
Timber windows and doors
1954 Addition
Concrete slab, flat mathoid roof, cement sheet external wall cladding (possibly asbestos)
1965 Addition
Asbestos sheet external wall cladding, timber windows and doors, profiled steel roof
-
Setting
close

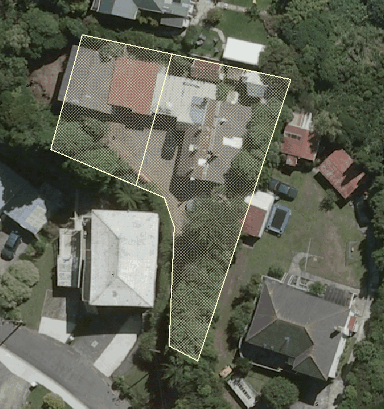

The laboratory building is discreetly sited up a drive and behind trees in a residential area, and makes a minor contribution to the domestic character of the neighbourhood.
-
Building Classification(s)
close
-
close
Cultural Value
The Lawrence Laboratory complex is an interesting example of an early 20th century light-industrial complex that was developed to suit the needs of a growing agricultural research business. The 1919 & 1947 laboratory buildings are good representative examples of modest, but well designed, utilitarian buildings. Each was designed in the immediate years after WWI and WWII at a time when there was a scarcity of building materials, but both are carefully crafted to fit their humble, utilitarian purpose.
The buildings have a historic association with the development of agricultural science and technology in New Zealand, a major contributor the nation’s economy. They were in continuous use as a scientific laboratory for nearly 90 years.
The buildings are a rare surviving example of an early twentieth century private industrial laboratory complex and have considerable cultural heritage significance for this reason.
-
Aesthetic Value
close
-
Architectural
Does the item have architectural or artistic value for characteristics that may include its design, style, era, form, scale, materials, colour, texture, patina of age, quality of space, craftsmanship, smells, and sounds?
The Lawrence Laboratory complex is an interesting example of an early 20th century light-industrial complex that was developed to suit the needs of a growing agricultural research business. The 1919 & 1947 laboratory buildings are good representative examples of modest, but well designed, utilitarian buildings. Each was designed in the immediate years after WWI and WWII at a time when there was a scarcity of building materials, but both are carefully crafted to fit their humble, utilitarian purpose.
-
Group
Is the item part of a group of buildings, structures, or sites that taken together have coherence because of their age, history, style, scale, materials, or use?
The buildings on site were constructed at various times from 1919 and 1965 and form a distinct group of industrial buildings designed to fit within their suburban setting.
-
-
Historic Value
close
-
Association
Is the item associated with an important historic event, theme, pattern, phase, or activity?
The buildings have a historic association with the development of agricultural science and technology in New Zealand, a major contributor the nation’s economy. They were in continuous use as a scientific laboratory for nearly 90 years.
-
- Scientific Value close
-
Social Value
close
Not assessed
-
Level of Cultural Heritage Significance
close
-
Authentic
Does the item have authenticity or integrity because it retains significant fabric from the time of its construction or from later periods when important additions or modifications were carried out?
Although there are later additions and alterations, much of original built fabric of the 1919 and 1947 laboratories survive.
-
Rare
Is the item rare, unique, unusual, seminal, influential, or outstanding?
The buildings are a rare surviving example of an early twentieth century private industrial laboratory complex and have considerable cultural heritage significance for this reason.
-
Representative
Is the item a good example of the class it represents?
The buildings, particularly the 1919 and 1947 laboratories, are a good representative example of utilitarian buildings constructed in the immediate years after WWI and WWII.
-
-
Local / Regional / National / International Importance
close
Not assessed
-
Aesthetic Value
close
-
close
Site Detail
-
District Plan Number
23/ 371
-
Legal Description
Pt Lot 47 and LOT 46 DP 2037
-
Heritage New Zealand Listed
None 2012
-
Archaeological Site
Unknown risk
-
Current Uses
unknown
-
Former Uses
unknown
-
Has building been funded
No
-
Funding Amount
Not applicable
-
Earthquake Prone Status
To be assessed
-
-
close
Additional Information
-
Sources
close
- BUSINESS MATTERS Dominion, 7 December 1915
- Findlay, Michael. “So High You Can’t Get Over It: Neo-classicism, Modernism and Colonial
- Fowler, Michael. 'Young, William Gray - Biography', from the Dictionary of New Zealand Biography. Te Ara - the Encyclopedia of New Zealand, updated 17-Jan-12
- Historic Places Trust, “Stanley Fearn”, Accessed: August 2012,
- Practice in the Forming of a Twentieth-century Architectural Landmark” in Interstices, 2008.
- Manawatu Standard, 2 November 1908
- Meyer, R. Up in the hills, (Wellington: Northern Suburbs Community Newspaper Trust, 1990)
- MR. H. W. LAWRENCE Evening Post, 17 March 1942
- NZ Companies website accessed December 2012
- Obituary, Evening Post 20/4/1972
- PURE MILK. Dominion, 13 September 1913
- PROTEST BY ANALYSTS. Dominion, 5 June 1909
- Robertson, Lawson. A Family Celebrates, unpublished research paper attached to a letter to Yvonne Legarth, Heritage Policy Advisor, 10/12/2001
- SCIENTIFIC FARMING. Wairarapa Daily Times, 5 October 1909
- Stones Directory 1920-35
- TELEGRAMS. Feilding Star, 6 September 1911
- THE INSTITUTE OF CHEMISTRY. Evening Post, 3 November 1926
- Von Haast, H.F. ‘William Beynon Austin Quick’ in The Spike or Victoria University College Review, 1916
- WCC archives
- Technical Documentation close
-
Footnotes
close
Not available
-
